Poor man's Frequency Convertor for a squirrel Motor

Monophase motor speed lowerer to 1/3th, 1/5th, ...


The idea is opposite of typical motor frequency convertor where the main voltage is first rectified and later chopped to a variable frequency. Outputting voltage must be in proportion of frequency. The lower the frequency the lower the voltage must be.

This simple circuit is operating as a cycloconverter. It picks every 3th half wave of  the inputting main voltage. The result is 1/3th from the frequency and even  from the voltage. It is near ideal and comparable to the normal motor frequency convertor. Only limitation is the speed control. This is not stepless but usable speeds are 1/3th, 1/5th, 1/7th and so on from the mains freq.

This circuit is dimensioned to the 1/3 frequency division. Increasing time constant of R2C1 it can operate in more lower speeds.

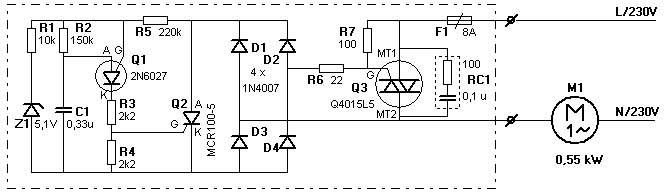

Convto3
2N6027
Q1
PUT (Programmable Unijunction Transistor)
 2N6027

Mcr100
Q2
SCR (Thyristor)
Motorola MCR100-5
or
MCR100-6

Mac16
Q3
TRIAC
Must be Three Quadrant type
400-600V 15A
Teccor Q4015L5 (isolated case)
or
Motorola MAC16D (case=MT2)

CurcTo3

Waveforms
The upper is the line voltage nominal 50Hz 230V
The lower is the output voltage to the motor: 17Hz 77V
